SYSTEM 03 — MULTI-AXIS STAGE MOTION
Combination Systems
Lift, slide, rotate and track — multiple motion axes united in one stage machinery ecosystem.
SYSTEM 03 — MULTI-AXIS STAGE MOTION
One Stage, Every Motion
Combination systems merge lifting, travelling, rotating and tracking machinery into single choreographed scenes. One controller orchestrates every axis with frame-accurate time-code sync, so wagons, lifts and revolves move as one instrument — repeatable night after night.
Signature Units

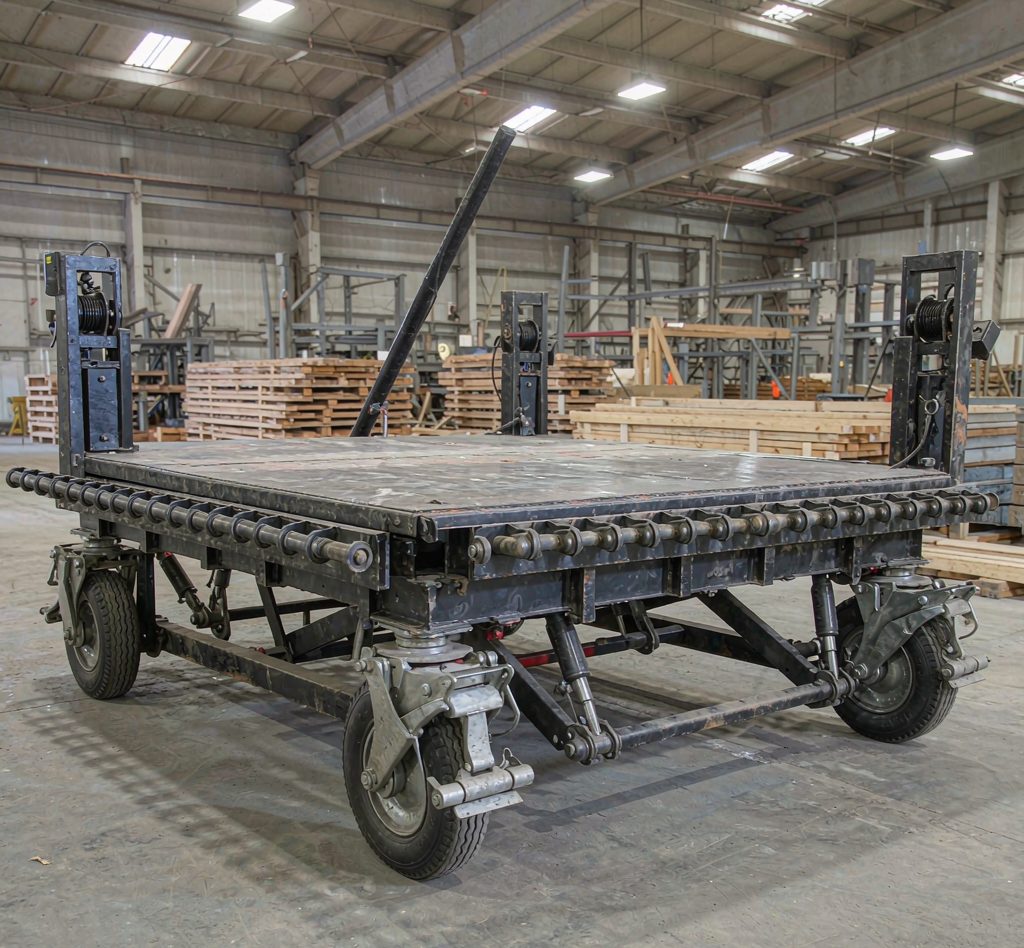

Hydraulic Stage Wagon
Rolling stage decks with built-in lift and self-propelled travel for fast, silent set changes.

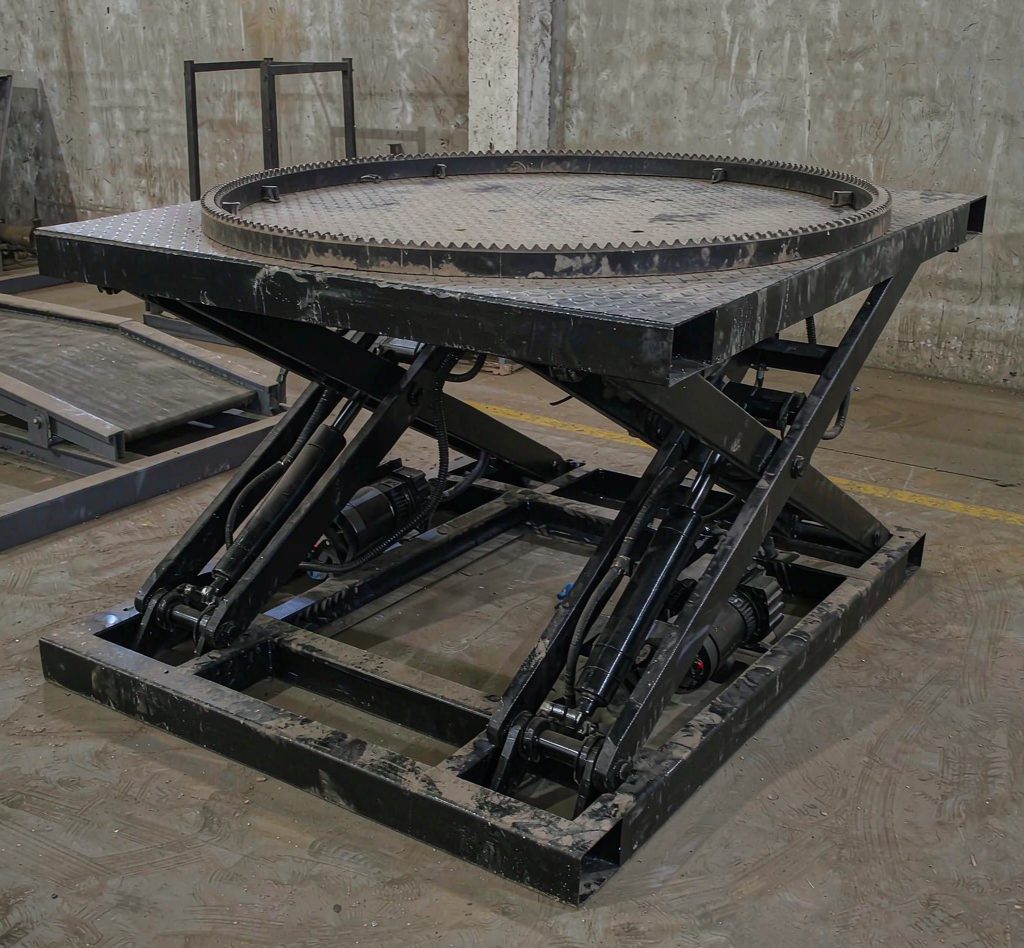

Lift-Rotate Platform
Scissor lift and slewing ring combined — one platform that rises and turns in the same cue.
Technical Specifications
- Axes: lift + traverse + rotate combined
- Sync: SMPTE time-code / show cue
- Scale: 2–60 units per system
- Drive: servo or hydraulic
- Repeat accuracy: ±1 mm
- Safety: zone monitoring + emergency stop
Applications
Theatres · Product Launches · Award Shows · TV Galas · Immersive Events
Build Your Stage with QIANHUI
Tell us your venue dimensions, payload and show concept — our engineers reply with a feasibility plan within 24 hours.
