SYSTEM 07 — TRACKED STAGE MOTION
Track Machinery Systems
Floor and ceiling rail systems that glide scenery, lighting and show elements across the stage.
SYSTEM 07 — TRACKED STAGE MOTION
Motion on Rails, Choreographed
Ground-support and overhead track systems carry scenery, lighting and show elements along straight or curved paths. Servo trolleys with anti-sway control hold every entrance steady at up to 2 m/s, while barcode feedback keeps each move frame-accurate.
Signature Units

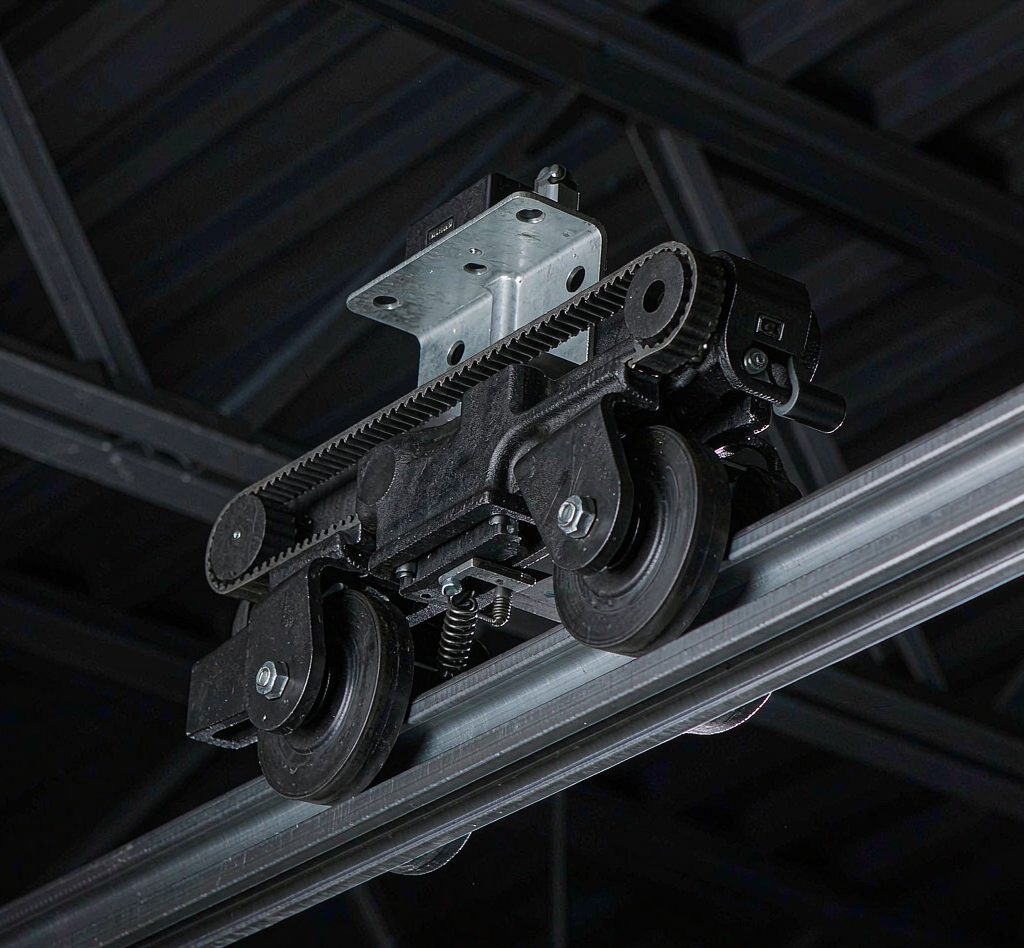

Ceiling Track Carrier
Suspended trolleys fly scenery and show elements across the grid in silence.

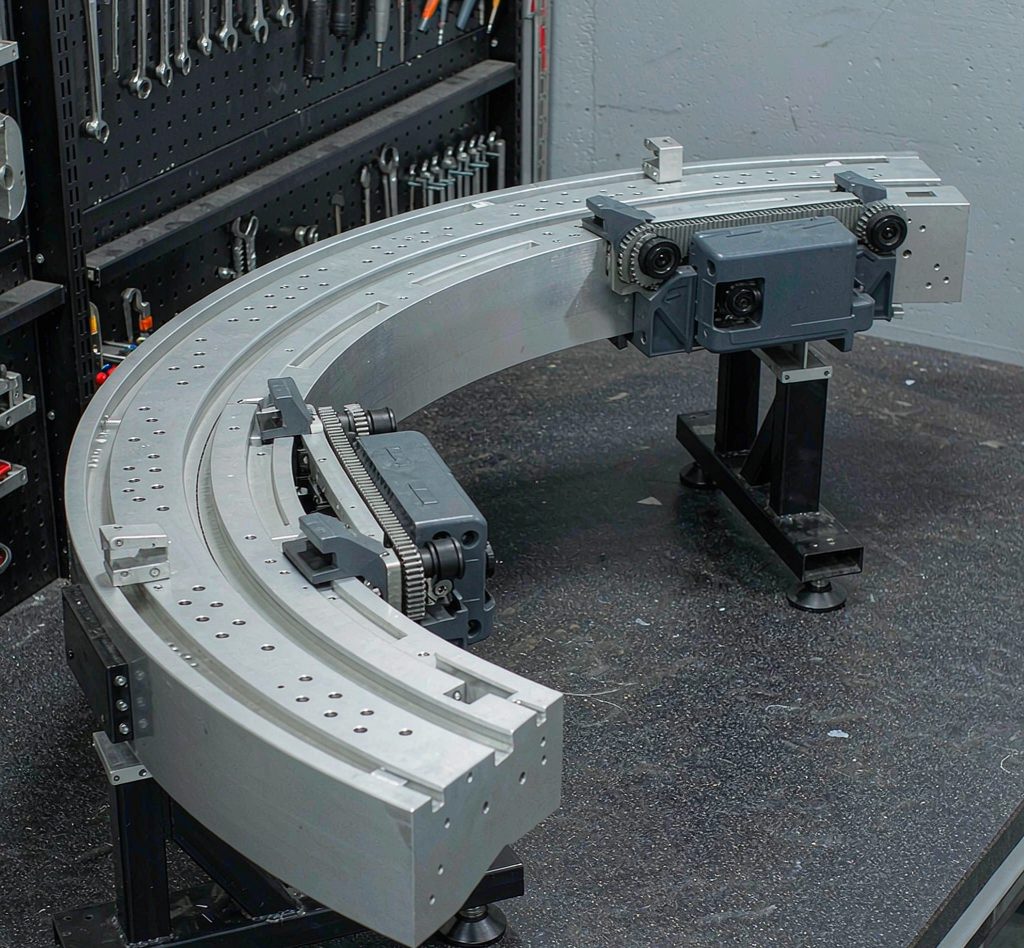

Curved Rail Motion System
Custom-bent rails sweep scenic elements through orbital, camera-like moves.
Technical Specifications
- Path: straight / curved / oval
- Travel speed: 0.1–2 m/s
- Payload: 50–800 kg per trolley
- Positioning: ±2 mm barcode feedback
- Track: aluminium or steel rail
- Install: ceiling, wall or floor support
Applications
TV Broadcast · Fashion Shows · Exhibition Halls · Digital Showrooms · Museums
Build Your Stage with QIANHUI
Tell us your venue dimensions, payload and show concept — our engineers reply with a feasibility plan within 24 hours.
